Pestaña Visor

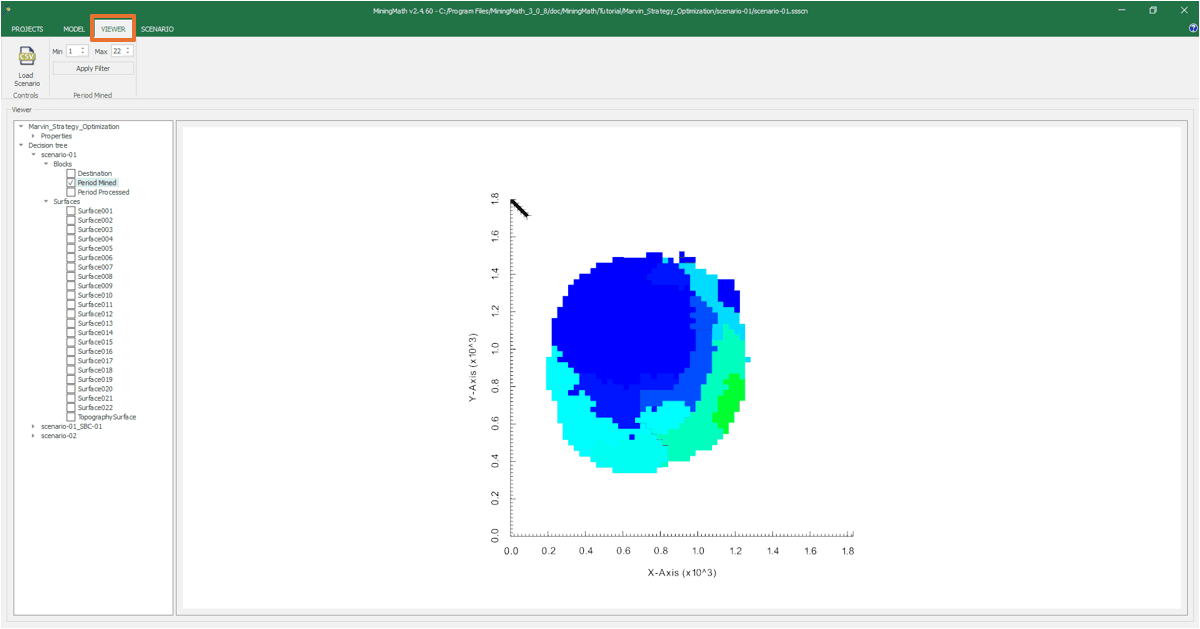

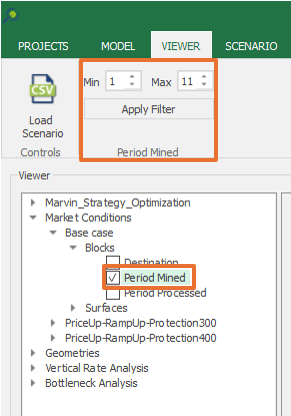

Después de ejecutar su escenario, la MinedBlocks.csv file will display its results on the 3visor D, allowing you to see your model from different angles. By selecting “Período minado,” you can view the mining sequence period by period.

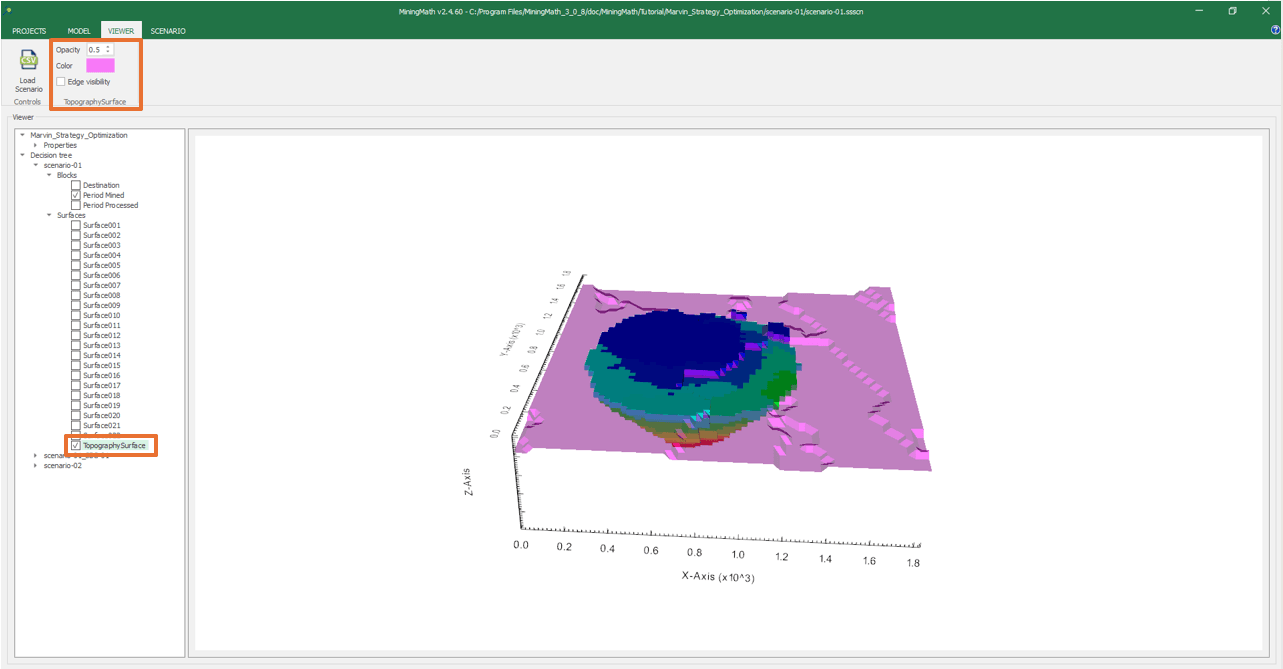

Seleccionando una superficie, you can identify topography changes for each period and adjust its opacity, making visualization easier.

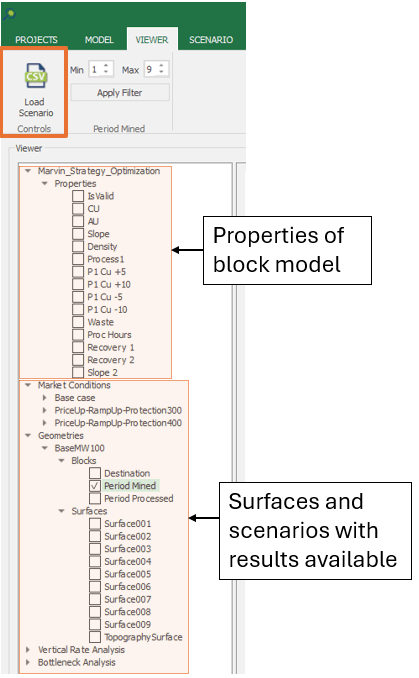

MiningMath also lets you import existing surfaces by placing them in the same folder as your other files, allowing you to validate their geometry if needed. Haga clic en Escenario de carga to import multiple scenarios and compare them, helping you extract the best results according to your project constraints.
